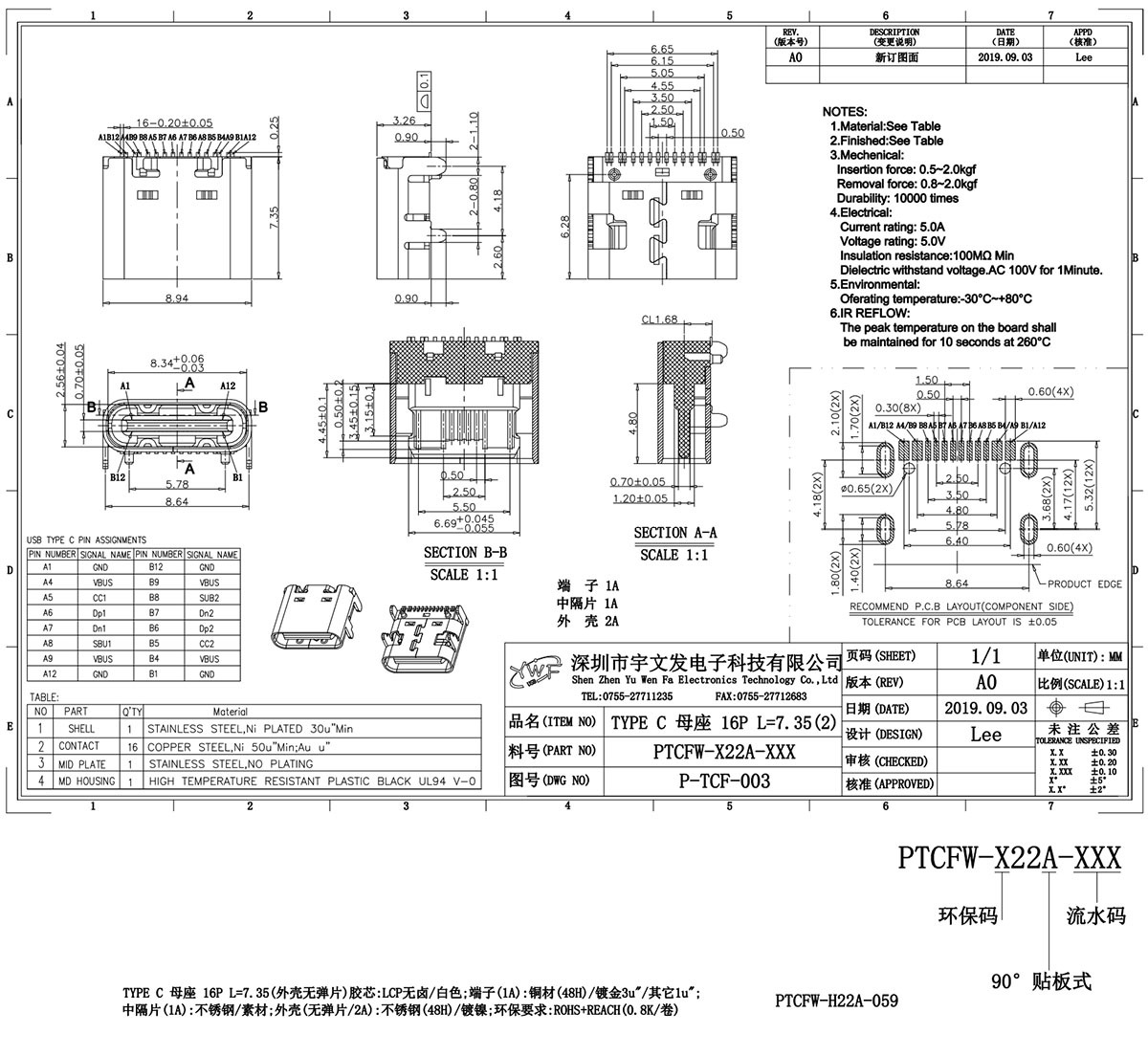

TYPE C 母座 16P

NOTES:
1.Material:See Table
2.Finished:See Table
3.Mechenical:
Insertion force: 0.5~2.0kgf
Removal force: 0.8~2.0kgf
Durability: 10000 times
4.Electrical:
Current rating: 5.0A Max
Voltage rating: 5.0V
Insulation resistance:100MΩ Min
Dielectric withstand voltage.AC 100V for 1Minute.
5.Environmental
Oferating temperature:-30℃~+80℃
6.IR REFLOW:
The peak temperature on the board shall be maintained for 10 seconds at 260℃
